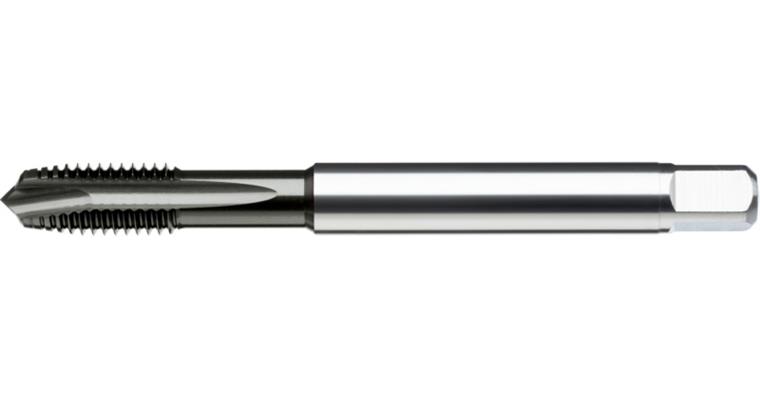

ATORN screw tap HSSE UltraHL B 371 0° M6 1 mm ISO2 D 3xD CNC UNI M

ATORN screw tap HSSE UltraHL B 371 0° M6 1 mm ISO2 D 3xD CNC UNI M

ATORN screw tap HSSE UltraHL B 371 0° M6 1 mm ISO2 D 3xD CNC UNI M
Item no: 1003140 933

Online price:

Available in 4-6 working days.

Application
For producing metric threads on CNC machines or conventional machines in through holes in steel, stainless steel, non-ferrous metals, cast iron and special alloys up to 1200 N/mm².

Advantage
  • ideal for long service life requirements and materials that are difficult to machine, such as stainless steel
  • Innovative cutting geometry and ULTRA HL coating guarantee high process reliability even under difficult machining conditions


Brand: ATORN
Thread type: Metric thread
Thread type x nominal diameter: M6
Tolerance of screw taps (Tol.): ISO 2X (6HX)
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 80 mm
Cutting material: HSSE
Surface: ULTRA HL
Pitch: 1 mm
Twist angle: 0°
DIN: 371
Shank diameter: 6 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 5 mm
Type: UNI MAX 45HL Control
Coolant supply: External
Shank square: 4,9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 1
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 2
Overall stainless steel suitability (ISO M): 1
fitness not iron total (ISO N): 1
fitness Titan/Nickel/Super total (ISO S): 1
Cutting speed (cast) suitability (ISO K): 1
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10482422

EAN no.: 4050293578782

Product Datasheet Datasheet cutting values
