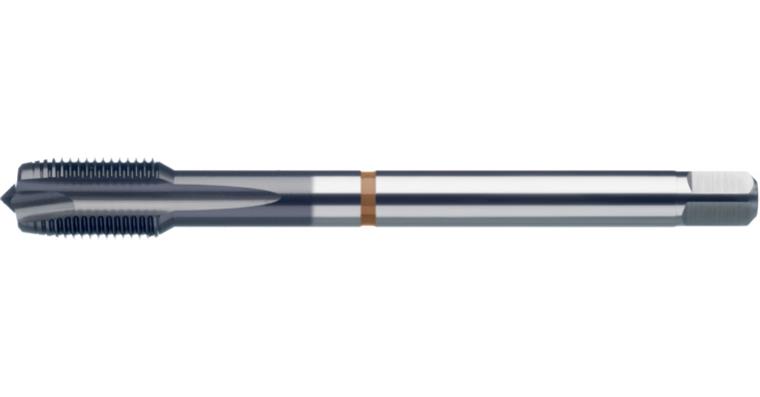

ATORN screw tap HSSE-PM TIAlN B 371 0° MF6 0.5 mm ISO2 x D 3xD CNC S

ATORN screw tap HSSE-PM TIAlN B 371 0° MF6 0.5 mm ISO2 x D 3xD CNC S

ATORN screw tap HSSE-PM TIAlN B 371 0° MF6 0.5 mm ISO2 x D 3xD CNC S
Item no: 1003140 825

Online price:

Available in 4-6 working days.

Application
For producing fine metric threads on CNC machines or conventional machines in through holes in the titanium and nickel alloy material group over 1000 N/mm².

Execution
With reinforced shank

Advantage
Long service life and high process reliability thanks to innovative cutting geometry and coating for use with titanium and nickel alloys


Brand: ATORN
Thread type: Metric fine thread
Thread type x nominal diameter: MF6
Tolerance of screw taps (Tol.): ISO 2X (6HX)
Hole type: Clearance hole ≤ 3xD
Lead angle shape: B
Length: 80 mm
Cutting material: HSSE-PM
Surface: TiAlN
Pitch: 0,5 mm
Twist angle: 0°
DIN: 371
Shank diameter: 6 mm
Application type/machine type: CNC | Conventional
Core hole diameter: 5,5 mm
Type: S MAX Control
Coolant supply: External
Shank square: 4,9 mm
Cutting speed (steel 1000) suitability (ISO P 1000 N/mm²): 3
Cutting speed (steel 1300) suitability (ISO P 1300 N/mm²): 3
Overall stainless steel suitability (ISO M): 3
fitness not iron total (ISO N): 3
fitness Titan/Nickel/Super total (ISO S): 2
Cutting speed (cast) suitability (ISO K): 3
Cutting speed (hard 55) suitability (ISO H 55HRC): 3
Cutting speed (hard 65) suitability (ISO H 65HRC): 3

ATORN-No.: 10482966

EAN no.: 4050293581140

Product Datasheet Datasheet cutting values
