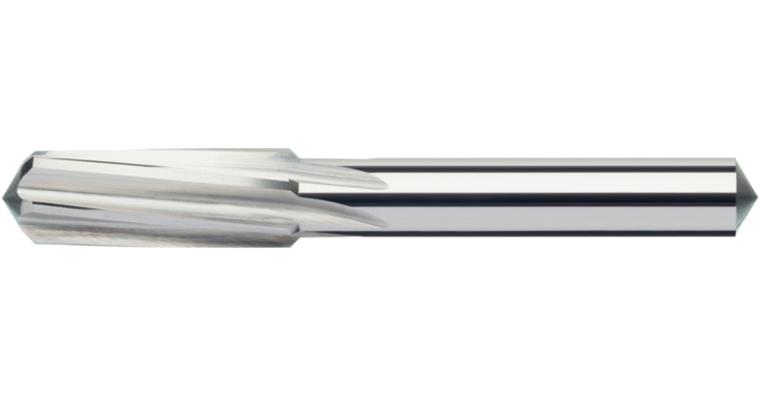

ATORN SC auto mch reamer T=6 C R=7–8° 5.0 mm H7 x 63 mm x 22 mm HA sim. DIN 8089

ATORN SC auto mch reamer T=6 C R=7–8° 5.0 mm H7 x 63 mm x 22 mm HA sim. DIN 8089

ATORN SC auto mch reamer T=6 C R=7–8° 5.0 mm H7 x 63 mm x 22 mm HA sim. DIN 8089
Item no: 1003130 400

Online price:

Available in 4-6 working days.

Application
For producing H7 fit tolerances in through holes on automated machines and NC machines up to 1300 N/mm².

Execution
7–8° right-hand spiral and extremely uneven pitch, type C

Advantage
  • good bore hole quality (dimensional tolerance, roundness, surface quality)
  • short design ensures good accessibility in cramped spaces and stable cutting conditions


Brand: ATORN
Cutting edge diameter: 5 mm
Tolerance of fit: H7
Suitable for through hole: Yes
Suitable for blind hole: No
Form: C
Groove type: Right-hand twist, 7-8°
Number of cutting edges: 6 PCS
Surface: Uncoated
Cutting material: SC
Length: 63 mm
Shank diameter: 4 mm
DIN: 8089 similar

ATORN-No.: 11250023

EAN no.: 4050293129106

Product Datasheet Datasheet cutting values
