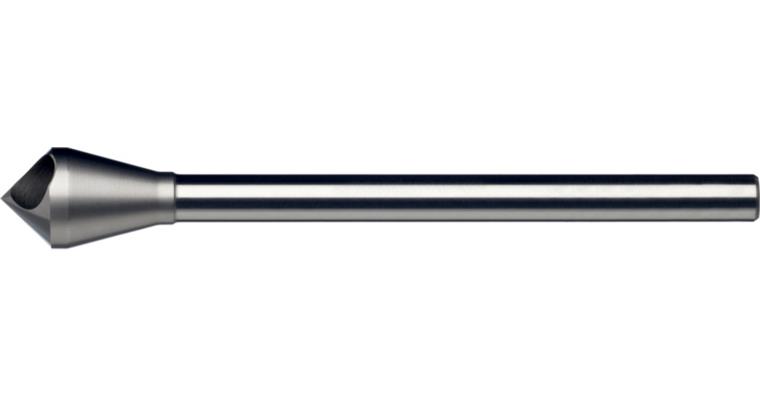

ATORN countersink, 90°, HSSE, T=1, extra long, 2.0-5.0 mm, 136 x 6 mm

ATORN countersink, 90°, HSSE, T=1, extra long, 2.0-5.0 mm, 136 x 6 mm

ATORN countersink, 90°, HSSE, T=1, extra long, 2.0-5.0 mm, 136 x 6 mm
Item no: 1003120 220

Online price:

Available in 6-8 working days.

Application
For producing 90° counterbores up to 1300 N/mm².

Execution
Single-edge countersink with slanted hole, straight shank length 120 mm

Advantage
  • slanted continuous hole improves chip removal
  • deep-set countersinks are made easy for the user


Brand: ATORN
Material to be processed: Universal use
Countersink angle: 90 Degree
Cutting material: HSSE
Surface: Uncoated
Number of cutting edges: 1 PCS
Tool holding device: HA parallel shank
Spot-facer diameter: 10,0 mm
Min./max. cutting edge diameter: 2-5 mm
Shank diameter: 6 mm
Length: 136 mm
Shaft length: 120 mm
f steel 1000: 0,12 mm/r

ATORN-No.: 10642020

EAN no.: 4050293068610

Product Datasheet Datasheet cutting values
