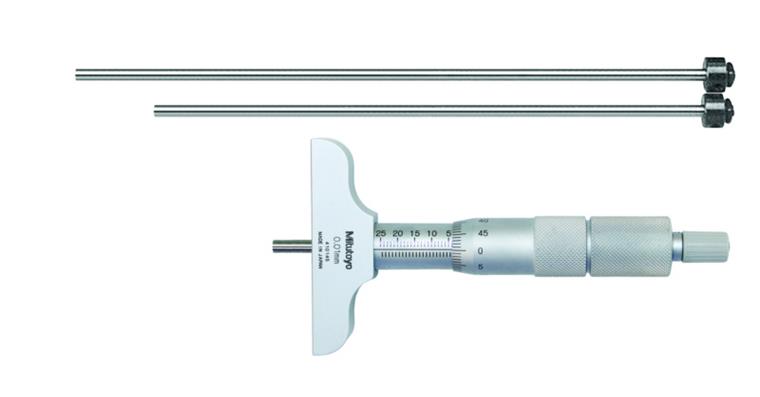

Depth micrometer 0-100 mm, 4 gauge slides bridge 63.5-16 mm

Depth micrometer 0-100 mm, 4 gauge slides bridge 63.5-16 mm

Depth micrometer 0-100 mm, 4 gauge slides bridge 63.5-16 mm
Item no: 1001350 971

Online price:

Available in 11-13 working days.

Application
For measuring bore depths and shoulders.

Execution
  • 4 mm diameter interchangeable rod inserts, with lapped measuring surface, offers a wide measuring range in 25 mm increments
  • A ratchet tool ensures constant measuring force
  • Measuring faces, hardened, precision-ground, micro-lapped
  • Semi-gloss chrome-plated scale drum and sleeve, dia. 18 mm

Delivery
Incl. box, adjustment wrench, Allen key


Brand: MITUTOYO
Min./max. length measuring range: 0-100 mm
Digit increment: 0,01 mm
Bridge length: 63,5 mm
Bridge width: 16 mm
Measuring surface diameter: 4 mm
Error limit: 0,004 mm
Measuring spindle increments: 0,5 mm
Spindle clamping: Yes
Number of measurement needles: 4 PCS

Manufacturer part no.: 129-111

Product Datasheet
